Luis Surface Lift For The Vogtlandschanzen Training Center Near Klingenthal

The installation of the new LUIS surface lift for the Vogtlandschanzen training center near Klingenthal is in full swing.

The old surface lift no longer met the requirements for youth development. The LUIS lift features state-of-the-art technology, now extends all the way to the upper jump, and offers a highly comfortable ride thanks to the outstanding enrope 200 towing devices with eddy current brake.

Technical Data:

• Elevation difference: 61 m
• Inclined tow length: 196 m
• 3 towers with 2.25 m track width
• Speed: 2 m/s
• Transport capacity: 300 persons/hour
• Drive power: 15 kW
• Drive location: valley
• Tensioning system: valley (hydraulic) and mountain (manual)

Enrope provides tailored support and consultation for operators throughout the entire product lifecycle: from the construction of new systems to conversions and relocations. Professional project management and the creation of inspection-ready documentation are a matter of course for enrope. Cooperation with authorities, experts, and civil engineers is well established.

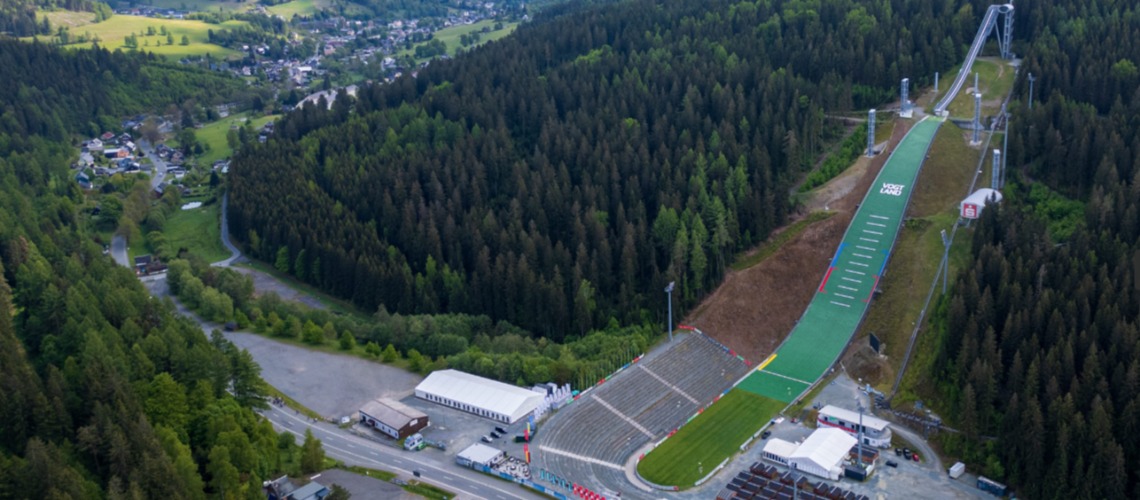

The Vogtland Arena is a winter sports center, located in the German town of Klingenthal (Saxony), on the northern slope of the Schwarzberg mountain in Vogtland, from which the complex takes its name. It opened in 2006.

It includes a large ski jumping hill with a construction point of K125 and a size of HS 140 and is one of the most modern architecture among World Cup hills.

Vogtland Arena was constructed from 2003 to 2005. Its official inaugural event was a Nordic combined Summer Grand Prix competition on 27 August 2006. Before that, in February 2006, the Czech national ski jumping championships had already been held there. In March 2006, Vogtland Arena saw a second-tier Nordic combined world cup competition and in September 2006 a Summer Grand Prix in ski jumping. On 7 February 2007, local club VSC Klingenthal took over one of the cancelled Ski Jumping World Cup events of Harrachov, making this the first FIS winter competition at the arena. Once again in 2007, a Summer Grand Prix ski jumping event took place there. In January 2008, the arena saw its first Nordic Combined World Cup event.

Since the 2008–09 season, Klingenthal has been a regular venue of the Ski Jumping World Cup, forming a part of the FIS Team Tour. In 2022, the Continental Cup held its Nordic combined event at Vogtland Arena
